5. [Domain] 설치 - master host

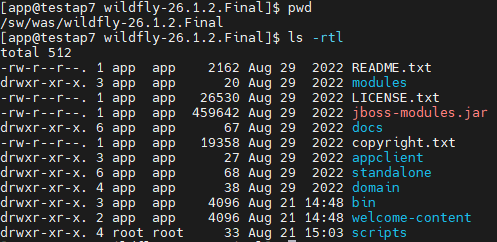

1. 설치 파일 압축 해제 및 원하는 디렉토리로 이동

(..이하 생략)



2. 스크립트 생성



master

  ㄴ connect_cli.sh

#java home
JAVA_HOME=/usr/local/bin/jdk-17
export JAVA_HOME

/sw/was/wildfly-26.1.2.Final/bin/jboss-cli.sh --connect --controller=192.168.56.107:7000

  ㄴ add_user.sh

  ㄴ 01_host_controller (start_master.sh, stop_master.sh, log_master.sh)

  ㄴ 02_application_deploy (archived, exploded)

slave

  ㄴ add_user.sh

  ㄴ connect_cli.sh

  ㄴ 01_host_controller (start_slave.sh, stop_slave.sh, log_slave.sh)

  ㄴ 02_server

  ㄴ 03_add_slave (reg-slave.cli, add_slave.sh)

scripts.zip

0.01MB



1) master host controller 기동/정지 스크립트 생성



start_master.sh

#java home
export JAVA_HOME=/usr/local/bin/jdk-17

#---------------------------------------------------------------------------

#log_directory
LOG_DIR=/log/wildfly/master

#---------------------------------------------------------------------------

#server_properties
WILDFLY_HOME=/sw/was/wildfly-26.1.2.Final
DOMAIN_HOME=$WILDFLY_HOME/domain
SERVER_HOME=/log/wildfly/master
CONFIG_FILE=host-master.xml
HOST_NAME=master

IP_ADDRESS=192.168.56.107

#management console port
MANAGEMENT_PORT=7000

#process controller port
PC_PORT=7001

#---------------------------------------------------------------------------

#heap_memory
JAVA_OPTS="$JAVA_OPTS -Xms1024m -Xmx1024m"
export JAVA_OPTS

#---------------------------------------------------------------------------

#log_backup
LOG_TIME=$(date +"%Y%m%d_%H%M")
mv $LOG_DIR/$HOST_NAME.out ${LOG_DIR}/$HOST_NAME.out_${LOG_TIME}

#---------------------------------------------------------------------------

#master_host_start
nohup $WILDFLY_HOME/bin/domain.sh -Djboss.host.name=$HOST_NAME -Djboss.domain.base.dir=$DOMAIN_HOME -Djboss.domain.servers.dir=$SERVER_HOME --host-config=$CONFIG_FILE -Djboss.management.http.port=$MANAGEMENT_PORT -bmanagement=$IP_ADDRESS -b $IP_ADDRESS --pc-address=$IP_ADDRESS --pc-port=$PC_PORT>> $LOG_DIR/$HOST_NAME.out 2>&1 &

※ SERVER_HOME은 인스턴스의 서버 데이터 저장 공간임(웹로직으로 생각하면 /data /log 등등 있는 경로)



stop_master.sh

#java home
export JAVA_HOME=/usr/local/bin/jdk-17
#---------------------------------------------------------------------------

#server_properties
WILDFLY_HOME=/sw/was/wildfly-26.1.2.Final
IP_ADDRESS=192.168.56.107
MANAGEMENT_PORT=7000
HOST_NAME=master

#---------------------------------------------------------------------------

#master_host_shutdown
$WILDFLY_HOME/bin/jboss-cli.sh --connect --controller=$IP_ADDRESS:$MANAGEMENT_PORT --command=/host=$HOST_NAME:shutdown



log_master.sh

HOST_NAME=master
tail -100f /log/wildfly/master/$HOST_NAME.out



2) slave host controller 기동/정지 스크립트 생성



start_slave.sh

#java home
JAVA_HOME=/usr/local/bin/jdk-17
export JAVA_HOME

#---------------------------------------------------------------------------

#log_directory
LOG_DIR=/log/wildfly/slave

#---------------------------------------------------------------------------

#server_properties
WILDFLY_HOME=/sw/was/wildfly-26.1.2.Final
DOMAIN_HOME=$WILDFLY_HOME/domain
SERVER_HOME=/log/wildfly/slave
CONFIG_FILE=host-slave.xml
HOST_NAME=slave1

IP_ADDRESS=192.168.56.107
MANAGEMENT_PORT=7002
MASTER_IP=192.168.56.107
MASTER_PORT=7000

PC_PORT=7003

#---------------------------------------------------------------------------

#heap_memory
JAVA_OPTS="$JAVA_OPTS -Xms1024m -Xmx1024m"
export JAVA_OPTS

#---------------------------------------------------------------------------

#log_backup
LOG_TIME=$(date +"%Y%m%d_%H%M")
mv $LOG_DIR/$HOST_NAME.out ${LOG_DIR}/$HOST_NAME.out_${LOG_TIME}

#---------------------------------------------------------------------------

#slave_host_start
nohup $WILDFLY_HOME/bin/domain.sh -Djboss.host.name=$HOST_NAME -Djboss.domain.base.dir=$DOMAIN_HOME -Djboss.domain.servers.dir=$SERVER_HOME --host-config=$CONFIG_FILE -Djboss.domain.master.address=$MASTER_IP -Djboss.domain.master.port=$MASTER_PORT -Djboss.management.http.port=$MANAGEMENT_PORT -bmanagement=$IP_ADDRESS -b $IP_ADDRESS --pc-address=$IP_ADDRESS --pc-port=$PC_PORT --backup --cached-dc >> $LOG_DIR/$HOST_NAME.out 2>&1 &

※ MANAGEMENT_PORT와 PC_PORT는 slave host 내용으로 작성

master host가 7000, 7001 사용 중이므로, 7002, 7003으로 설정



stop_slave.sh

#java home
export JAVA_HOME=/usr/local/bin/jdk-17

#---------------------------------------------------------------------------

#server_properties
WILDFLY_HOME=/sw/was/wildfly-26.1.2.Final
IP_ADDRESS=192.168.56.107
MANAGEMENT_PORT=7002
HOST_NAME=slave1

#---------------------------------------------------------------------------

#slave_host_shutdown
$WILDFLY_HOME/bin/jboss-cli.sh --connect --controller=$IP_ADDRESS:$MANAGEMENT_PORT --command=/host=$HOST_NAME:shutdown



log_slave.sh

HOST_NAME=slave1
tail -100f /log/wildfly/slave/$HOST_NAME.out



3) 서버 인스턴스 기동/정지 스크립트 생성



3. management user 추가

add_user.sh 내용 수정 후 실행 (master host, slave host 계정 모두 생성)

#java home
JAVA_HOME=/usr/local/bin/jdk-17
export JAVA_HOME

WILDFLY_HOME=/sw/was/wildfly-26.1.2.Final
${WILDFLY_HOME}/bin/add-user.sh

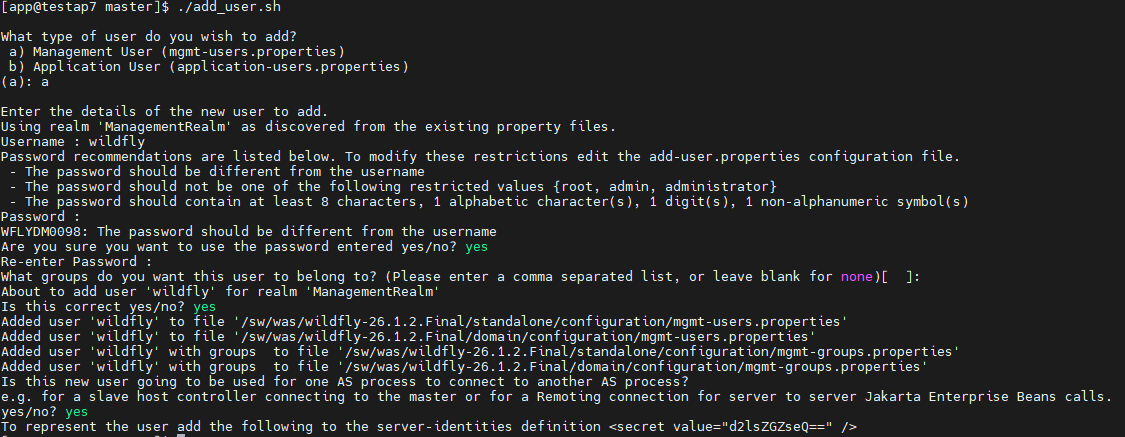

master host 계정

(wildfly/wildfly)

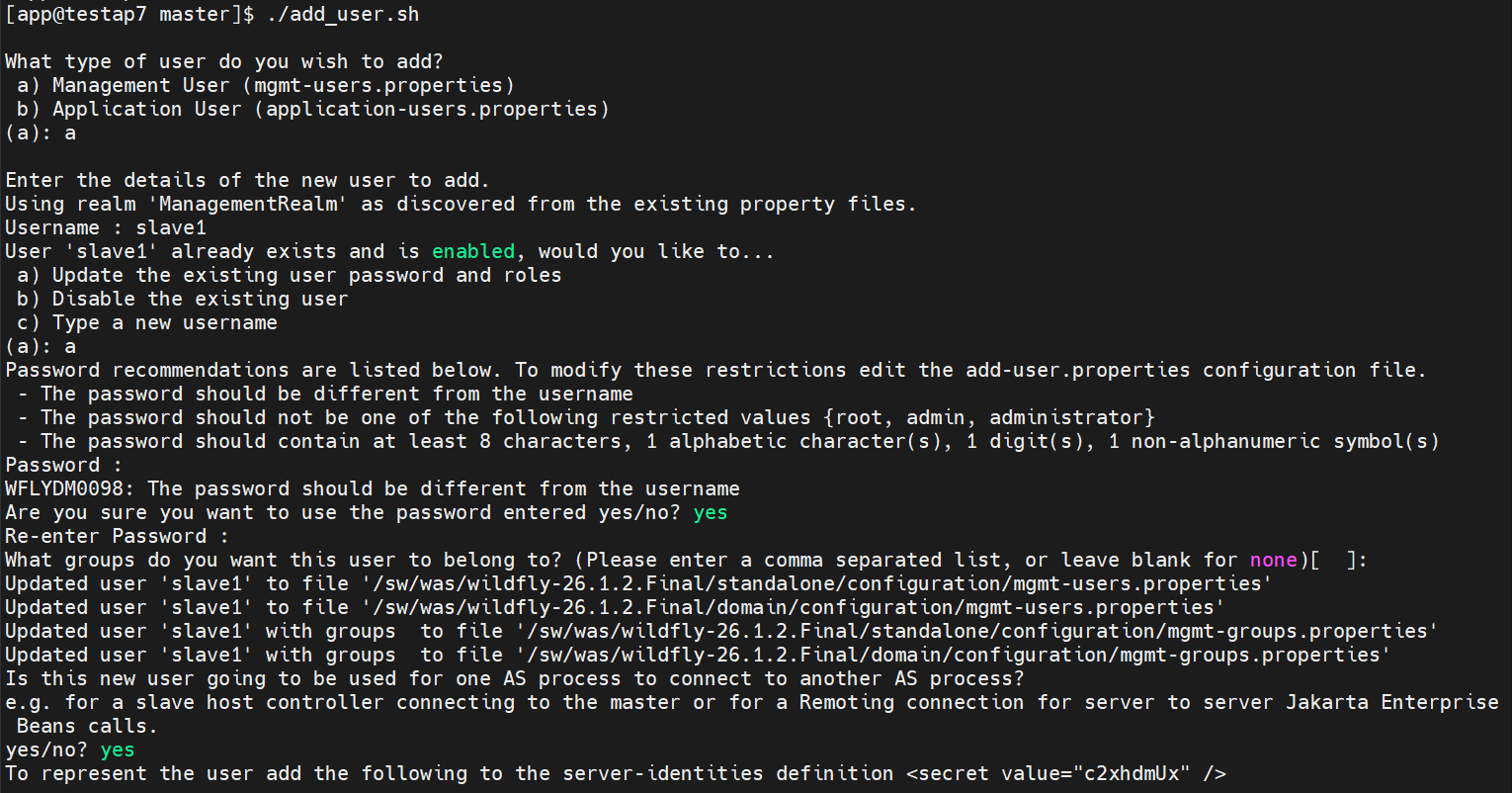

slave host 계정

(slave1/slave1)



4. 바인딩 ip 주소 설정

jboss는 별도의 ip를 설정하지 않고 구동하면 바인딩 ip 주소가 자동으로 127.0.0.1로 바인딩 되어 외부 접속이 불가능하다.

외부 접속을 위해 host-master.xml 파일에 다음과 같이 설정

cd /sw/was/wildfly-26.1.2.Final/domain/configuration/
vi host-master.xml

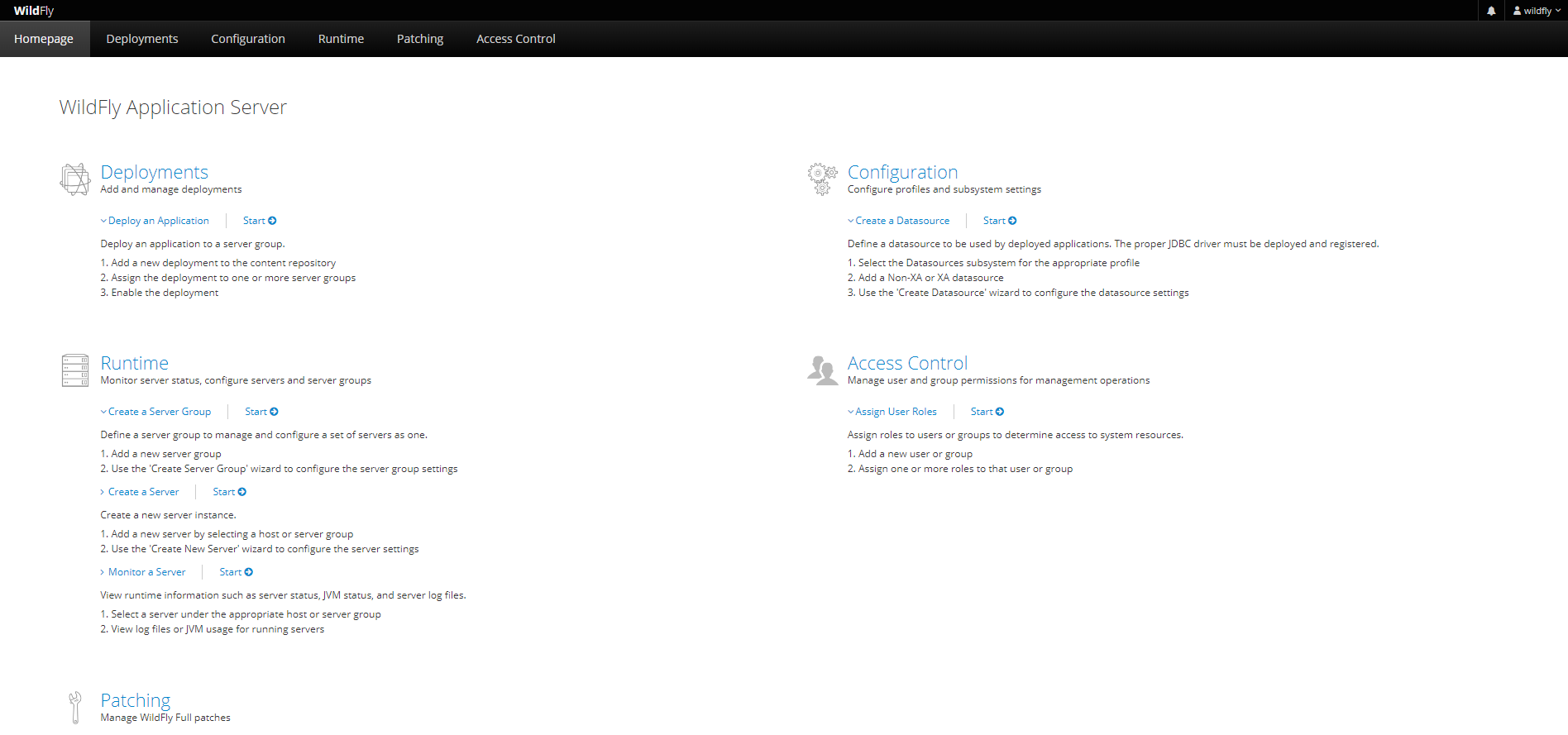

5. master host 실행 후 관리 콘솔 접속 확인

./start_master.sh



start_master.sh에 설정한 ${서버ip}:${MANAGEMENT_PORT}로 접속

192.168.56.107:7000
